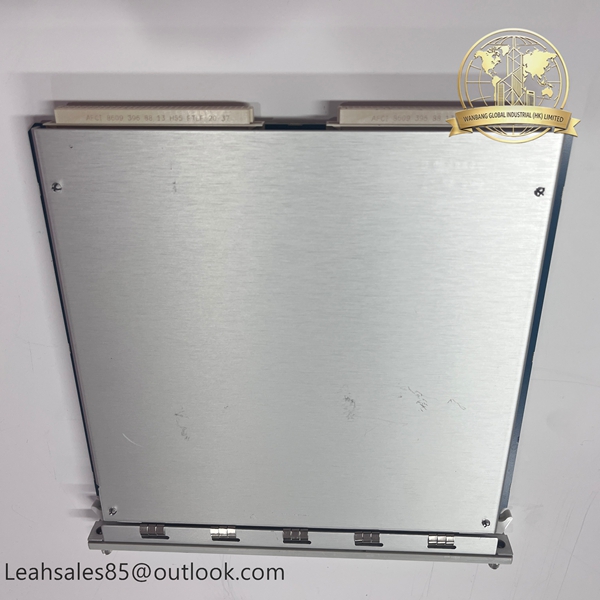

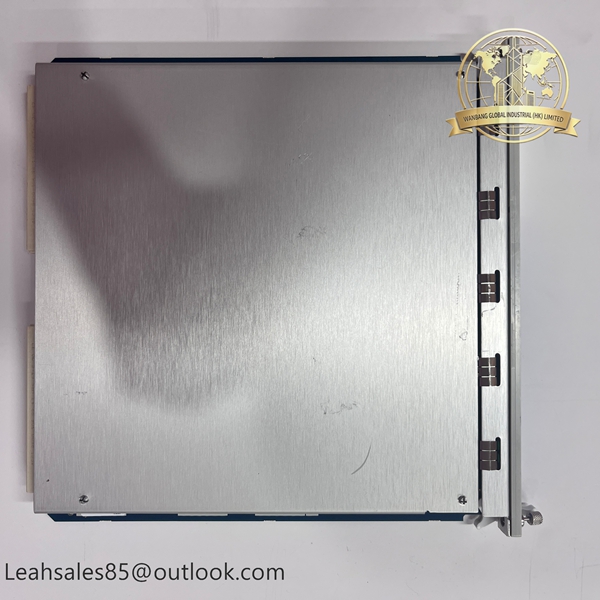

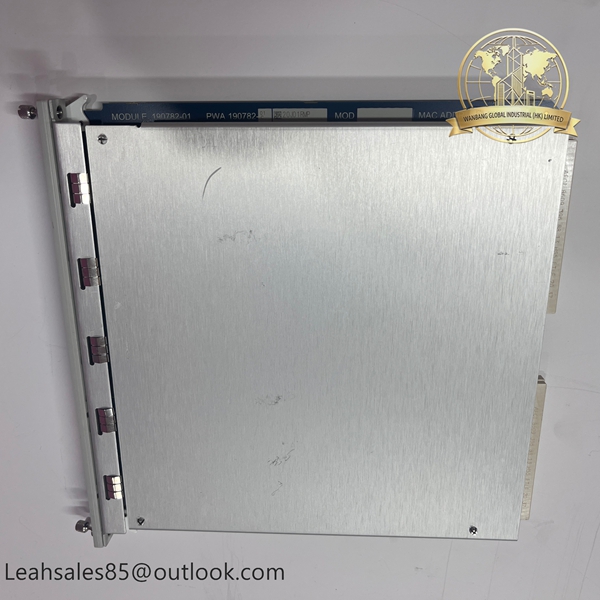

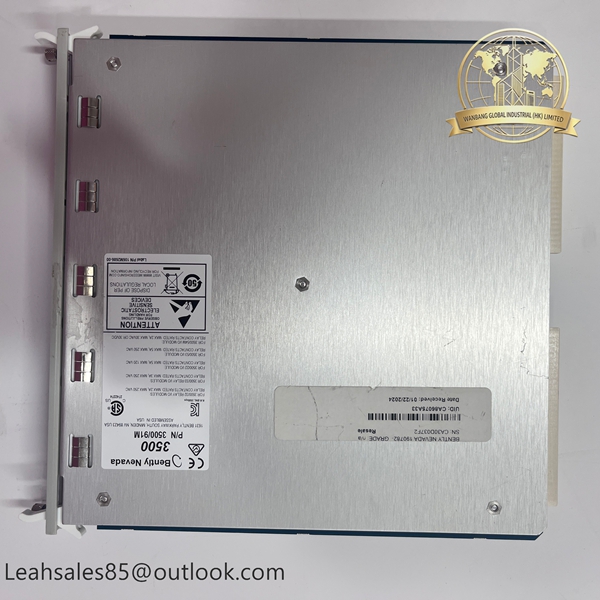

BENTLY 3500‑91M 190782‑01 EGD Communication Gateway Module

Products Introduction

Product Introduction

The BENTLY 3500‑91M 190782‑01 is an EGD communication gateway module for Bently Nevada 3500 rack‑based machinery protection and condition monitoring system. It realizes high‑speed transmission of vibration, displacement and status data collected by 3500 series monitoring cards, supports EGD protocol to communicate with compatible controllers such as GE Mark VIe, and transmits real‑time machine operating data to external DCS and upper‑level control systems. As hot‑swappable rack plug‑in hardware, it ensures reliable data interaction for rotating‑equipment monitoring loops, widely used as critical spare part for turbine, compressor and generator monitoring cabinets.

Key Features

Support EGD 2.01 and Ethernet UDP/IP high‑speed data transmission
10/100BASE‑TX Ethernet interface conforming to IEEE802.3 standard
Real‑time upload monitoring value, alarm status and fault information of 3500 rack
Seamless connection with EGD‑compatible controllers and plant DCS system
Hot‑swap function, allow module replacement without shutting down rack system

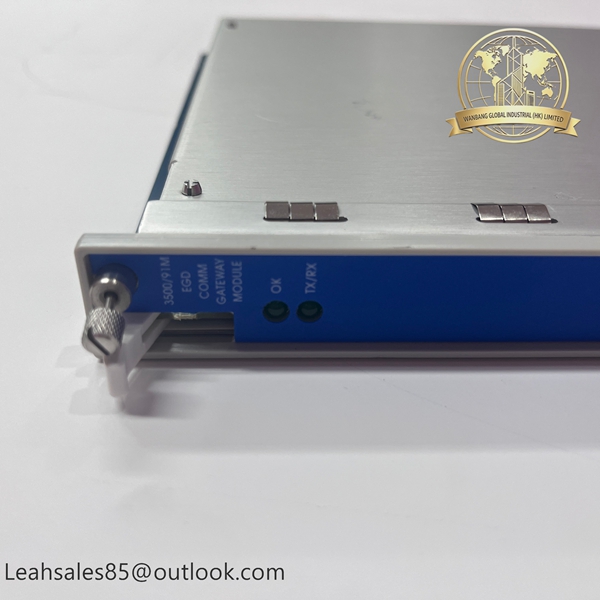

On‑board LED indicator for working status and fault diagnosis
Rack‑mount plug‑in structure for simple installation and maintenance
Excellent anti‑interference performance adapting to complex industrial field environment

Technical Specifications
